Hinge angle restrictor
A range of hinge accessories to limit the opening angle of cabinet doors
Titus hinge angle restrictors limit the opening angle of cabinet doors and prevent damage to door or any adjacent object.
The restrictors are complementary insertion pieces for all Titus 110 and 170 hinges and are very easy to mount. When used on a 110° hinge, the door opening angle is reduced to 80°, and on a 170° hinge, the restrictors limit the opening angle to 135°.

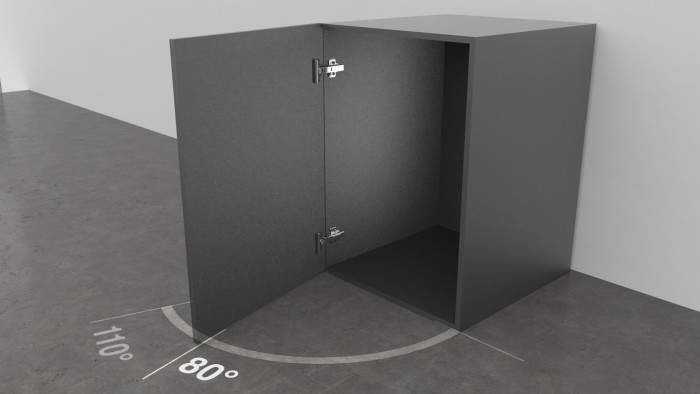

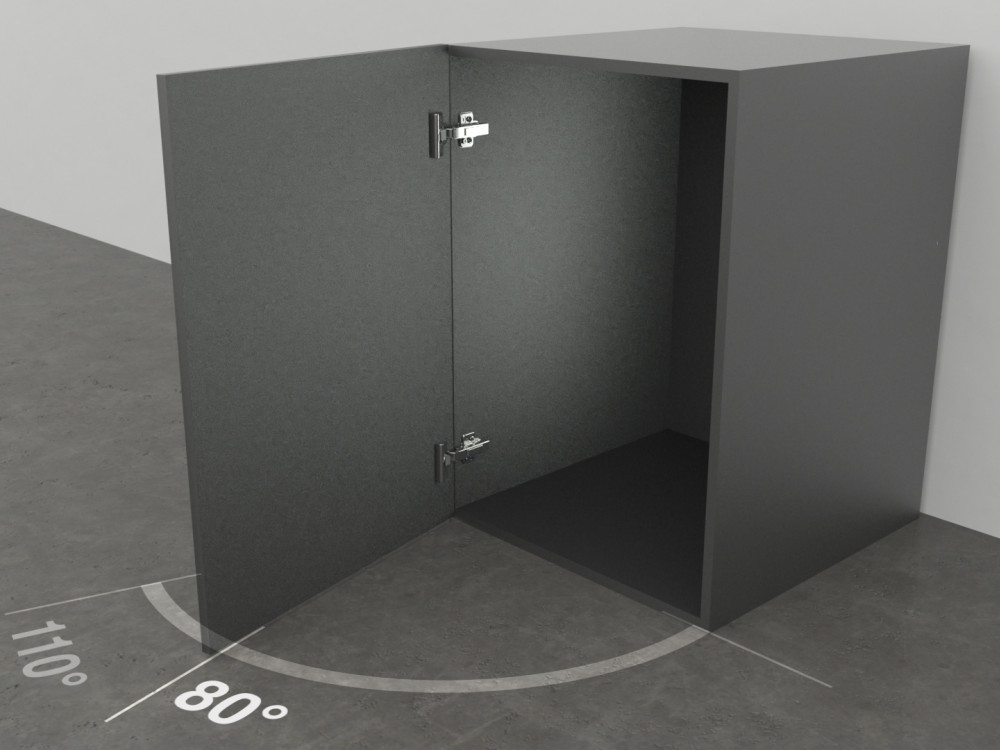

Efficient protection
When mounted, the restrictors prevent cabinet doors from opening completely, and thus reliably prevent damage on nearby cabinets, walls, windows, appliances, and other adjacent objects.
Quick and easy tool-free mounting
Simple installation of the restrictors by hand insertion in the gap between the hinge cup and arm.

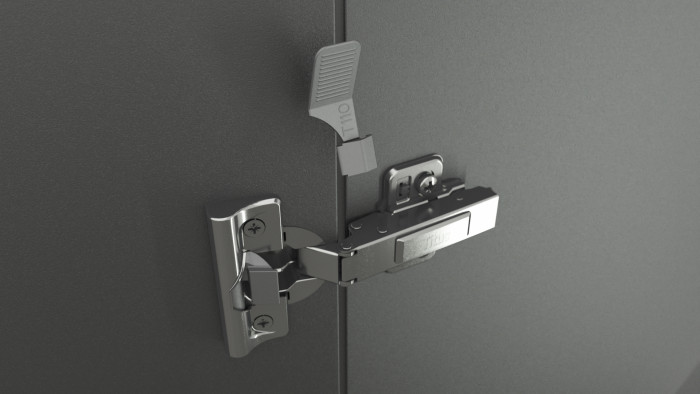

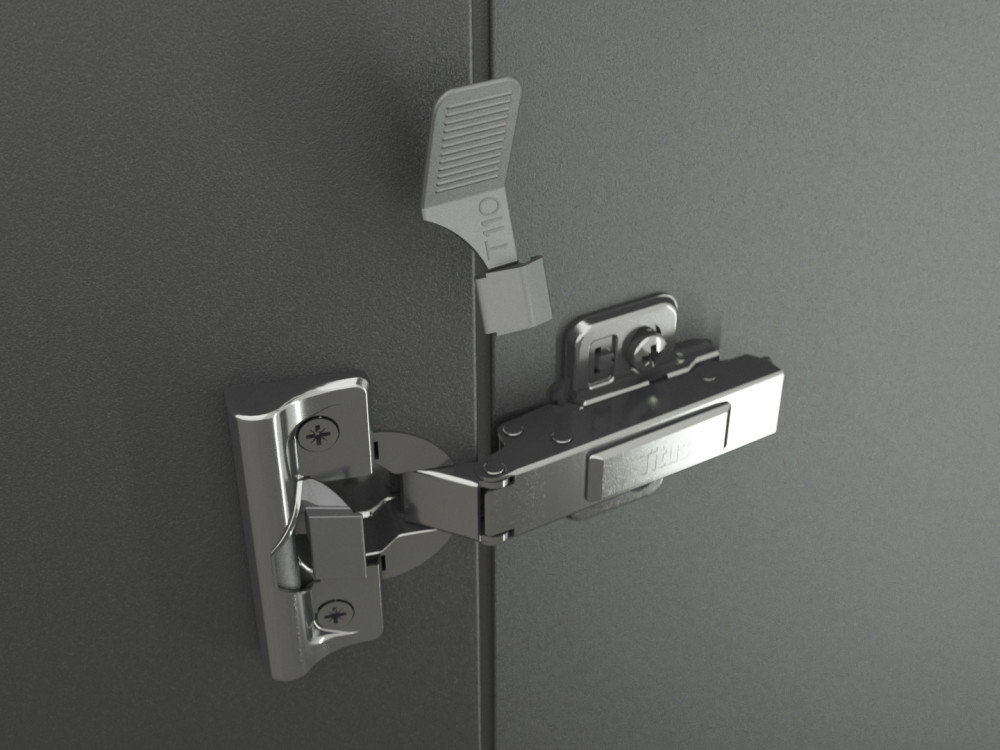

Retrofit mounting
Our angle restrictors are designed to both allow insertion before mounting the cabinet doors, as well as retrofit mounting, ensuring flexibility of use and consistent hinge performance.

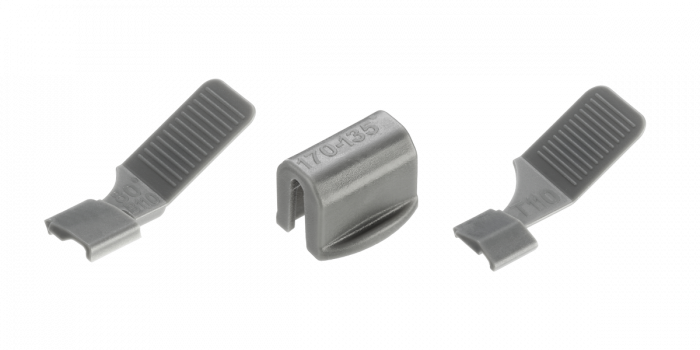

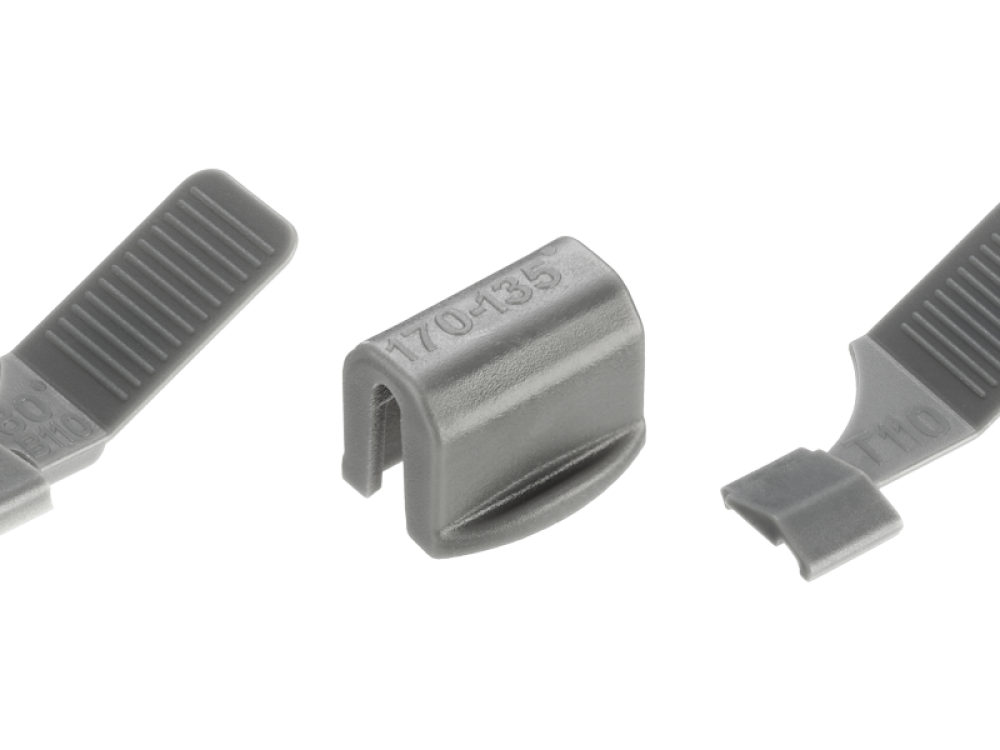

Hinge angle restrictor variants
The complete range of Titus hinge angle restrictors is comprised of:
- 80° Hinge Angle Restrictor T-type (to be used with Titus hinge T-type 110)
- 80° Hinge Angle Restrictor S-type/B-type (to be used with Titus hinge S-type 110, B-type 110)
- 135° Hinge Angle Restrictor (to be used with all Titus 170 hinges)
