Hinges

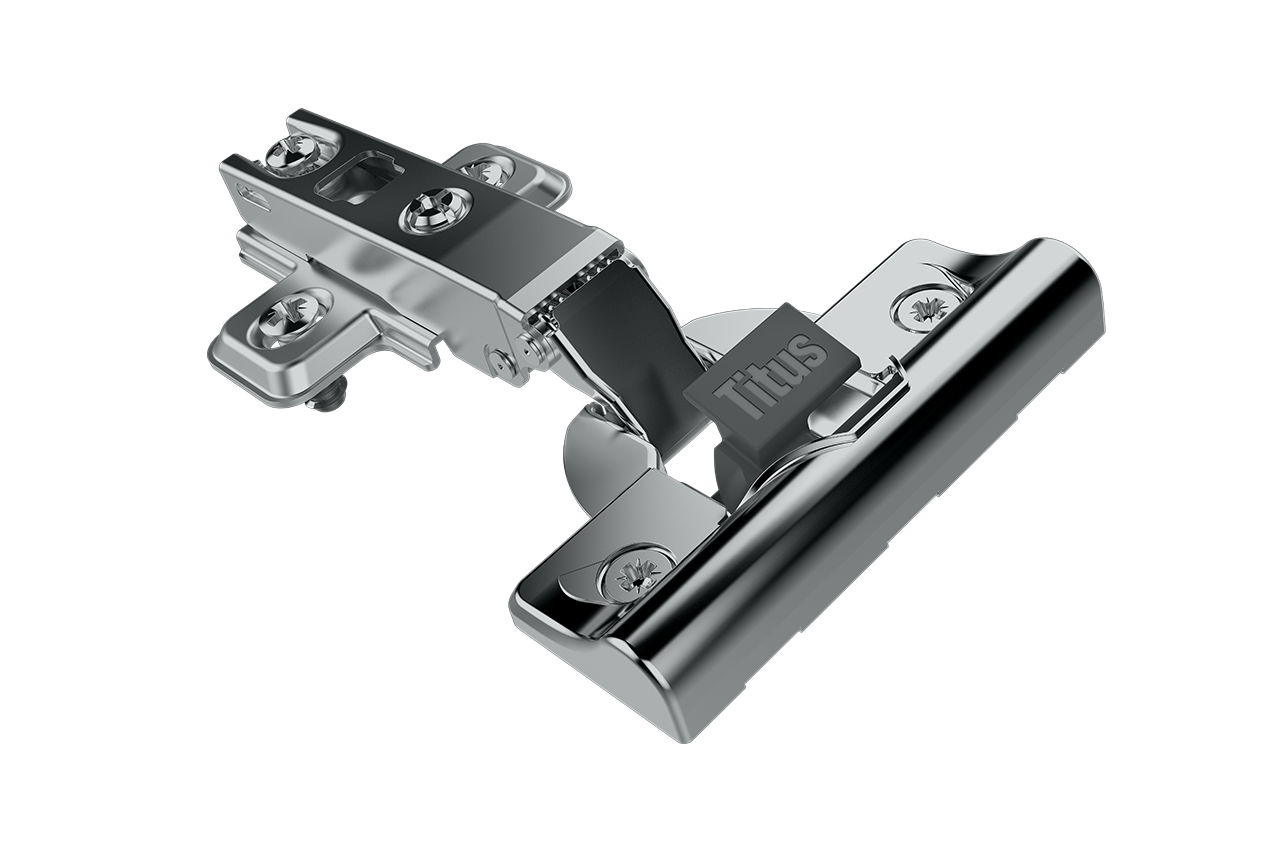

Titus NEW CI - B-type i3 - isolated on black - RGB

B-type hinge

B-type hinge

Titus NEW CI ambient T type + Tekform Slimline kitchen C white lines A

Efficient entry-level hinge

The most versatile slide-on hinge with integrated damping and a new B-type-i3 hinge with premium damping.

Slide-on mounting system

The assembly is extremely easy thanks to our slide-on hinge-to-plate mounting system. It is a proven solution that ensures a reliable and intuitive hinge-to-plate mounting on various door sizes.

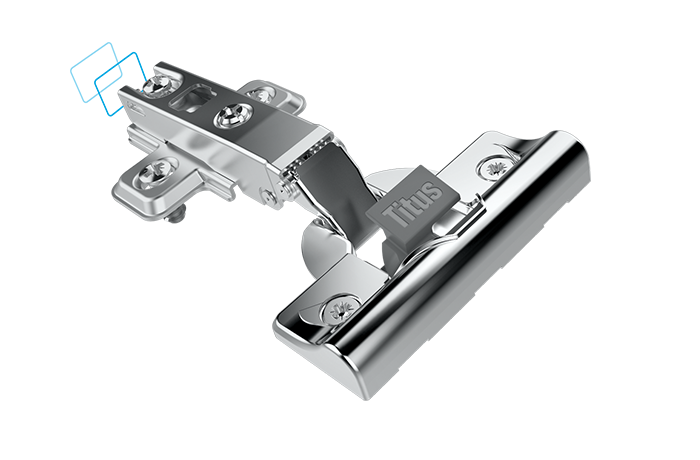

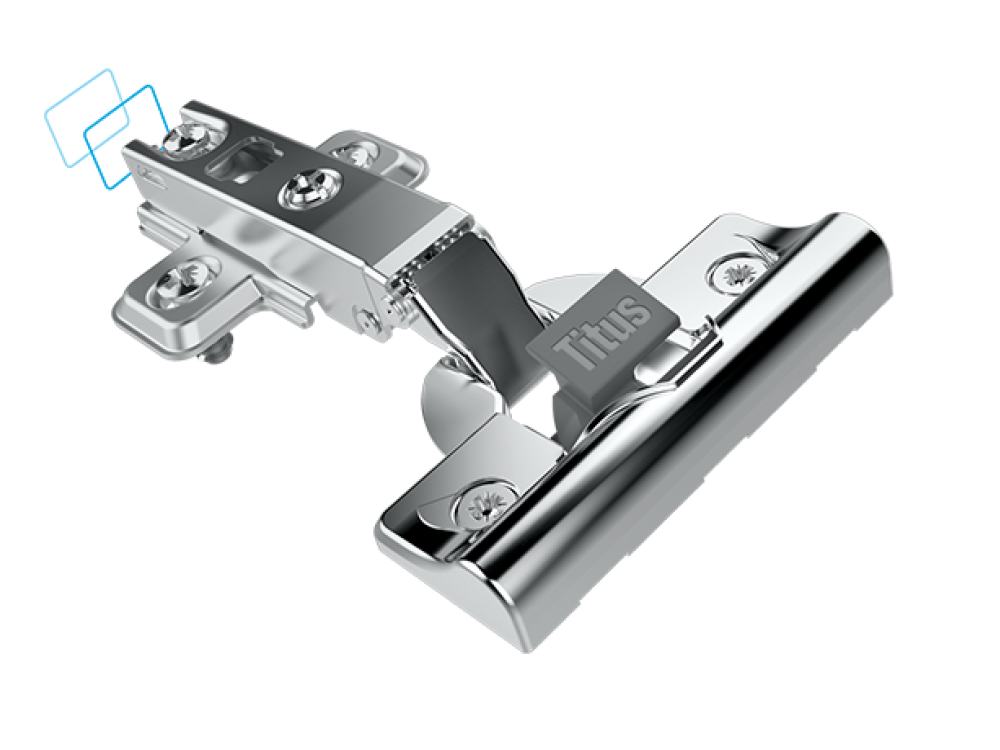

Titus 08 B type 700x460

Hinge with integrated damping

Discover B-type-i3, a slide-on hinge combined with premium integrated damping.

Explore B-type-i3

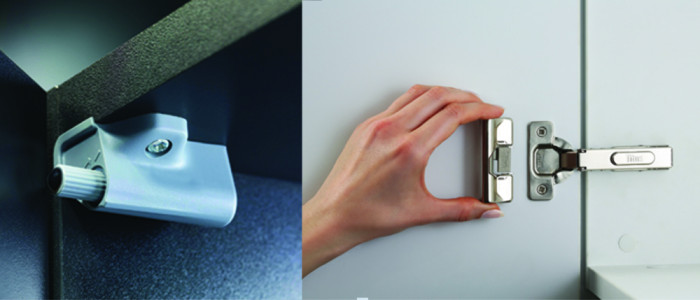

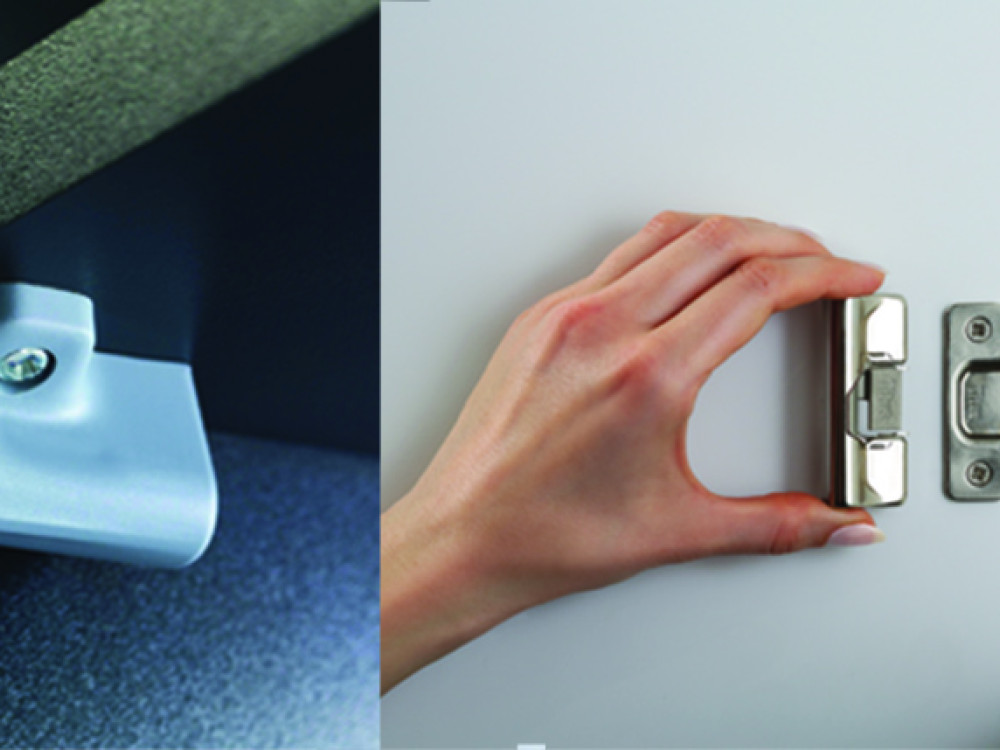

Glissando TL3 CR 700×300 2 3

A choice of damping options

Choose between integrated into the hinge cup, Glissando add-on, or stand-alone damping solutions.

Titus 02 Consumer preferred door closing 700x525

Consumer preferred door closing

Titus Glissando hinge damping provides a ConfidentClose, consumer-preferred way of soft closing action*.  It is characterized by:

  1. fast closing
  2. late start of deceleration action
  3. quiet landing with SoftTouch.
* Based on results of Titus research made in UK, Germany and Slovenia. Click here for more information.

  • Opening Angle

  • Cranking

  • Door Thickness

  • Door tab K

  • Mounting Mode

  • Mounting plate type

  • Mounting plate height

  • Soft closing options

  • Durability (cycles)

  • B-type-i3 with integrated damper

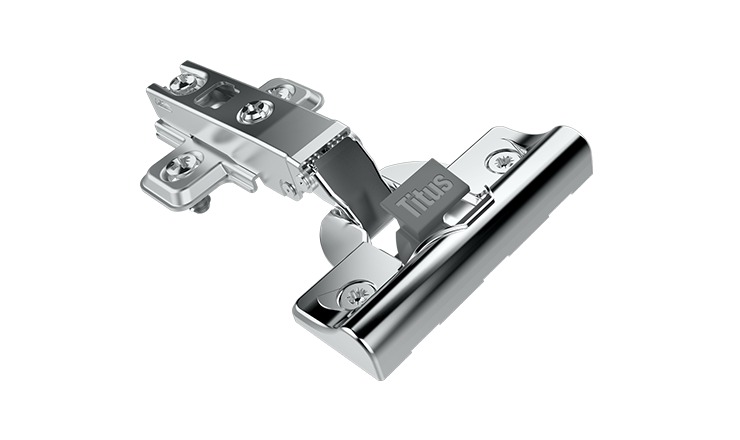

    Titus 09 B type 740x440

    • Opening Angle

      110°

    • Cranking

      0mm, 9mm, 15mm, angled

    • Door Thickness

      15-22mm

    • Door tab K

      3-5mm

    • Mounting Mode

      slide-on

    • Mounting plate type

      cruciform

    • Mounting plate height

      0mm, 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 9mm, 18mm

    • Soft closing options

      Damping integrated in the hinge cup

    • Durability (cycles)

      80,000

  • B-type hinge

    Titus 09 B type 740x440

    • Opening Angle

      110°, 170°

    • Cranking

      0mm, 9mm, 15mm, angled

    • Door Thickness

      16-24mm

    • Door tab K

      3-5mm

    • Mounting Mode

      slide-on

    • Mounting plate type

      cruciform

    • Mounting plate height

      0mm, 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 9mm, 18mm

    • Soft closing options

      Glissando add-on or stand-alone damping solutions

    • Durability (cycles)

      /

Pevious
Next

Download catalogue

Catalogue

Stay in the loop

Subscribe to our newsletter to be among the first to learn about our latest products, state-of-the-art innovations, and company news.

Subscribe

Find a hinge for your application

Are you unsure which hinge is the most suitable for your cabinet? Try Product Selector to discover our full range of products and find the one that best meets your needs and expectations.

Go to Product Selector

Where to get our products?

Our products are distributed through authorised distributors. Please refer to a list of distributors for your market.

Find a distributor

Accessories

  • Titus Mailing Hinge Angle Restrictor 740x540

    Hinge Angle Restrictors

    A range of hinge accessories to limit the opening angle of cabinet doors.


  • Titus-NEW-CI---Push-Latch-silver---isolated-on-black---from-right

    Push Latch

    Our effortless touch opening system for doors and drawers without handles is designed to be used with standard hinges and drawers. It allows for maximum efficiency and flexibility.

    Push Latch

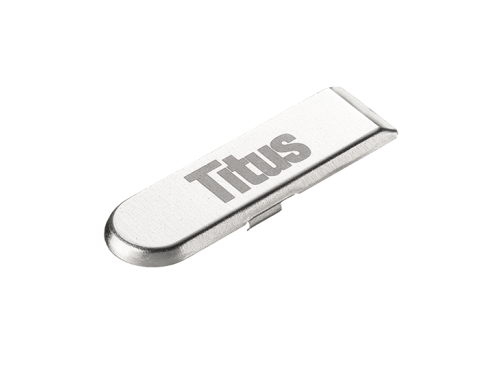

  • Cover cap hinge seznam

    Cover Caps

    Compatible hinge arm cover caps are available for our entire range of hinges. A must for a sleeker, more finished look of your cabinets.
