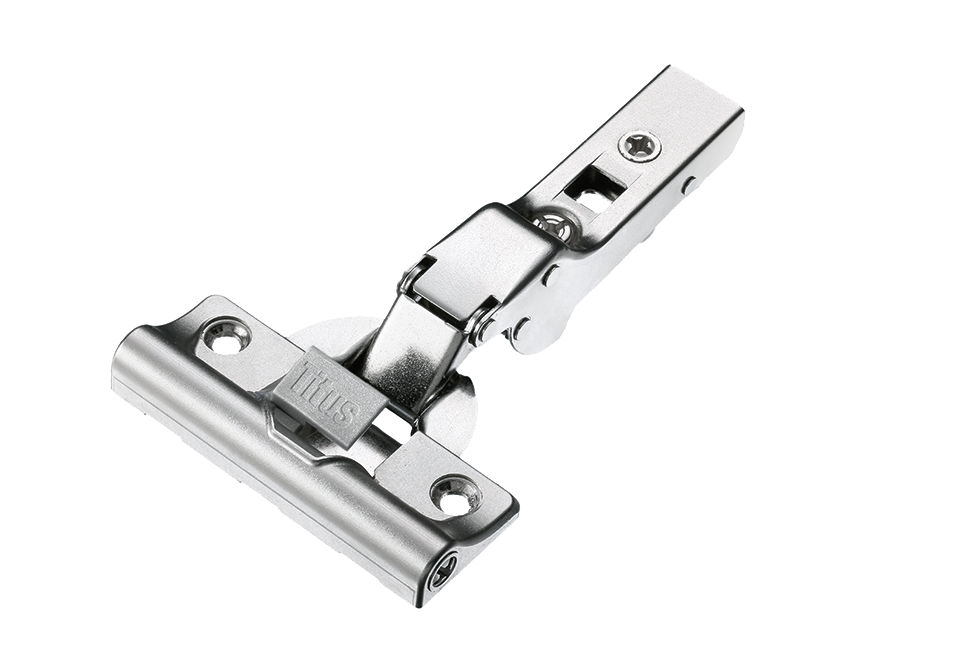

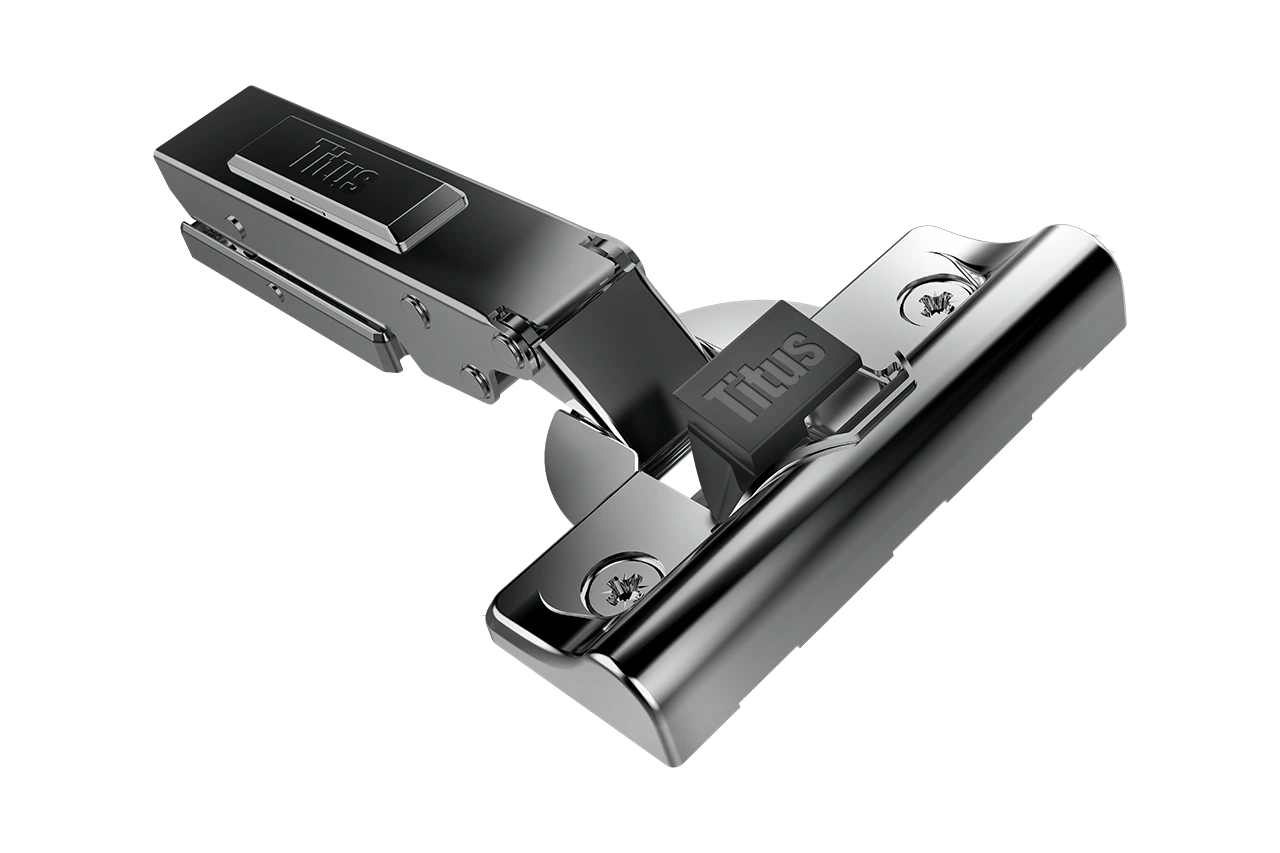

T-type 95 concealed hinge for thick doors
T-type 95 concealed hinge with integrated or add-on soft closing for doors from 16 to 34mm thickness. T-type design for the fastest 3Way snap-on door installation and consistent performance through the whole cabinet life-cycle.

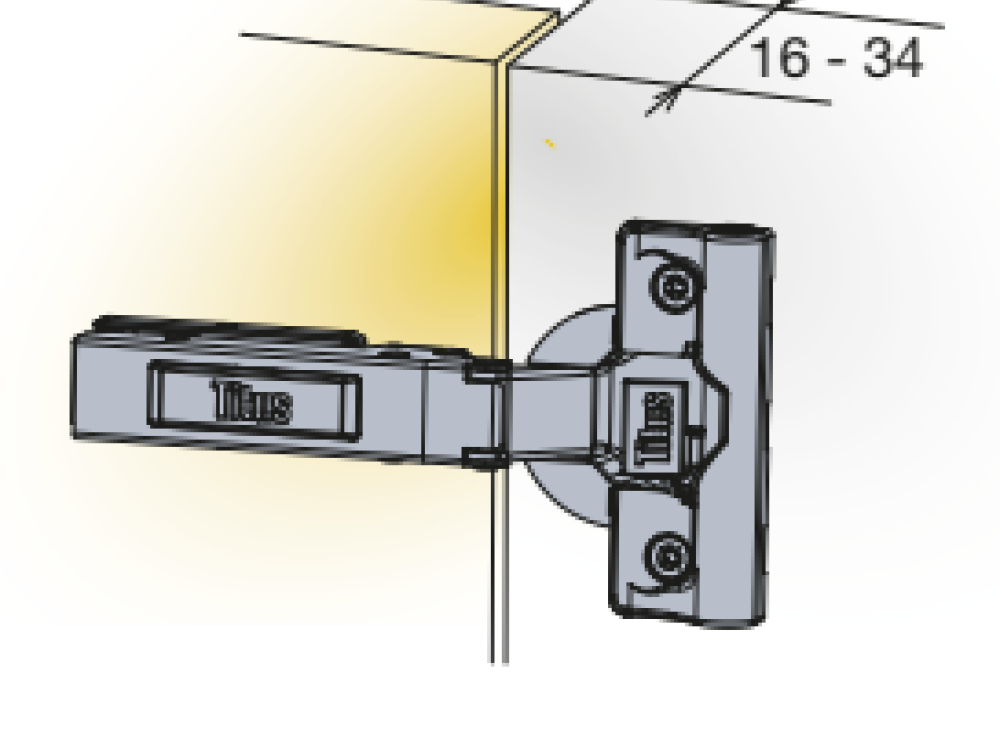

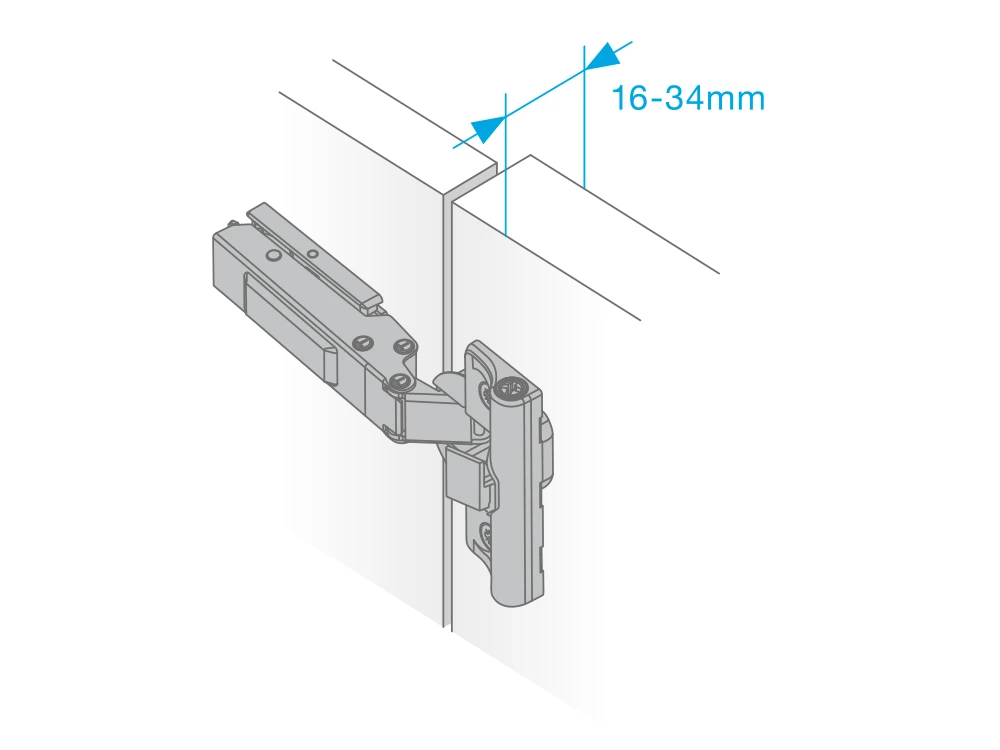

Optimized movement of thick door
The thick door hinge kinematics with 95° opening enables:
-Optimized opening and closing of doors with thickness up to 34mm
-Narrow reveals
-Reliable and consistent performance on various door sizes and weights

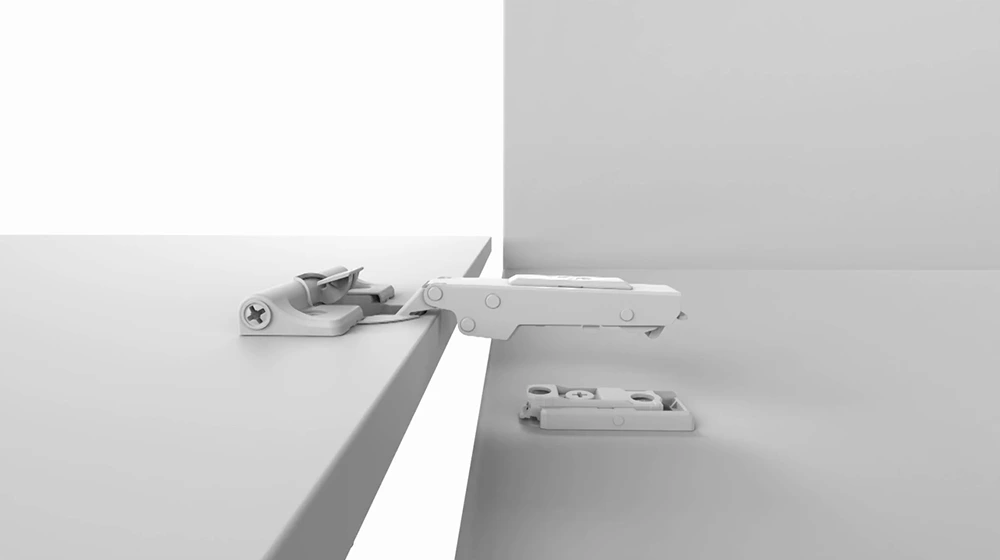

3Way snap-on mounting
Our 3Way snap-on mounting plate allows for an intuitive hinge-to-plate mounting in three directions (from the front, the back and the top). Mounting cabinet doors - even the tallest ones! - has never been this easy.
Highly tolerant
Efficient performance in marginal values of drilling tolerances. Reliable door closing even in cases of a non-perfect hinge alignment. Hinge to plate attachment with an extended distance between the snap-on points assures stability and rigidity.

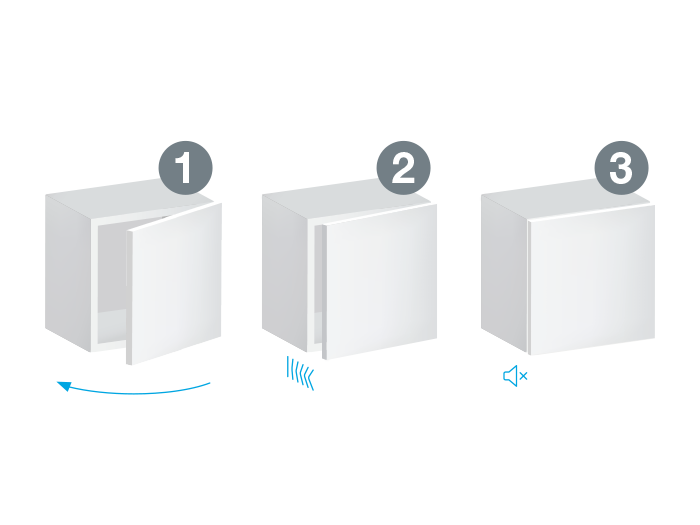

Consumer preferred door closing
Titus Glissando hinge damping provides a ConfidentClose, consumer-preferred way of soft closing action*. It is characterized by:
- fast closing
- late start of deceleration action
- quiet landing with SoftTouch.
Download catalogue
Subscribe to our newsletter
Subscribe to our newsletter and be among the first to learn about our latest products, state-of-the-art innovations and company-related news.
Technical overview
|
Opening angle |
95° |
|
Cranking |
0mm, 5mm, 9mm, 17mm |
|
Door thickness |
16-34mm |
|
Door tab K |
3-9mm |
|
Mounting Mode |
3Way |
|
Mounting plate type |
cruciform, linear (all T-type mounting plates) |
|
Mounting plate height |
0mm,1mm, 2mm, 3mm,4mm |
|
Hinge cup drilling depth |
12.0 mm |
|
Soft closing options |
-integrated damping into the hinge cup |
|
Hinge cup drilling pattern |
45/9.5mm, 48/6mm |
|
Hinge constant |
13 mm |
|
Overlay |
up to 22mm |
|
Mounting plate fixing |
Screw-on ready, EasyFix, fixing dowels for machine insertion. **expando dowels, euro screws, wood screws – available upon request |
