System 6 Flush

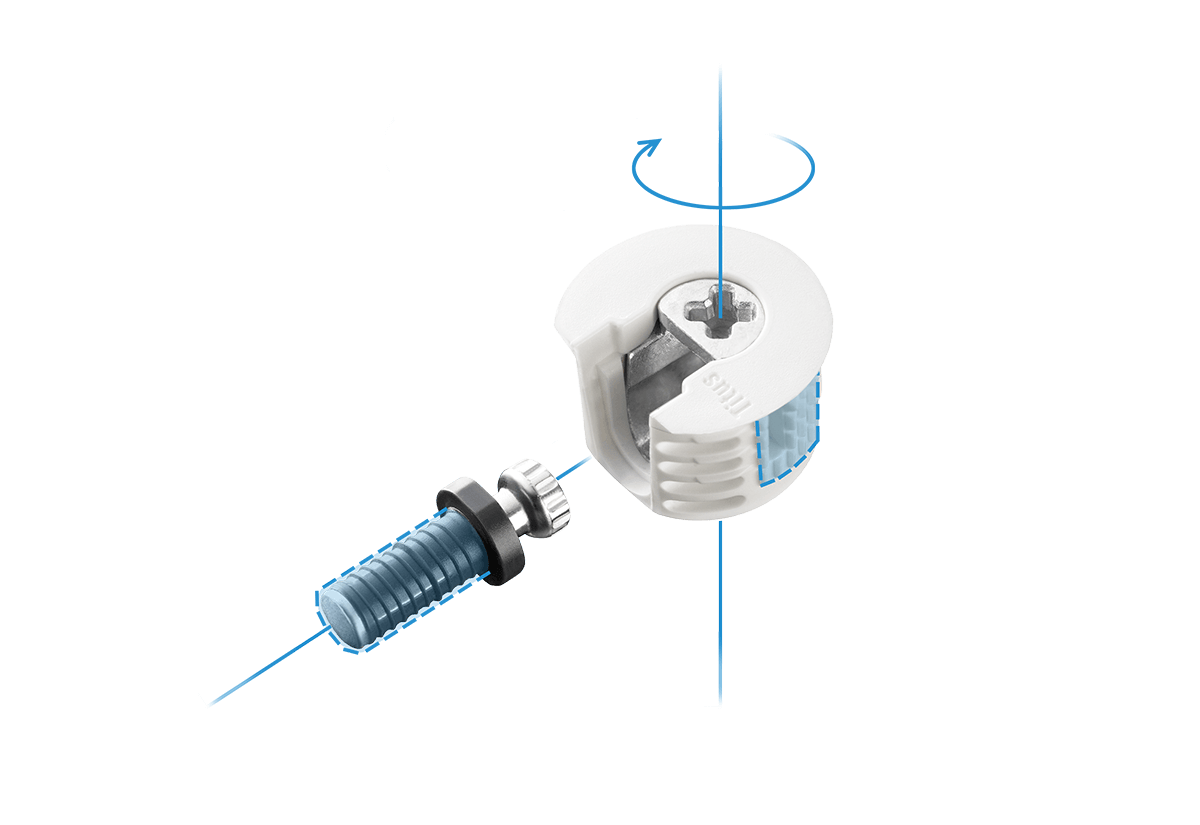

The new System 6 Flush connector with its flat head forms a flat surface when inserted into the board to provide an excellent and efficient way to package cabinet systems flat. The use of the System 6 Flush cam in combination with the Titus Quickfit dowel allows for quick and easy tool-free installation, providing ultimate flexibility on site.

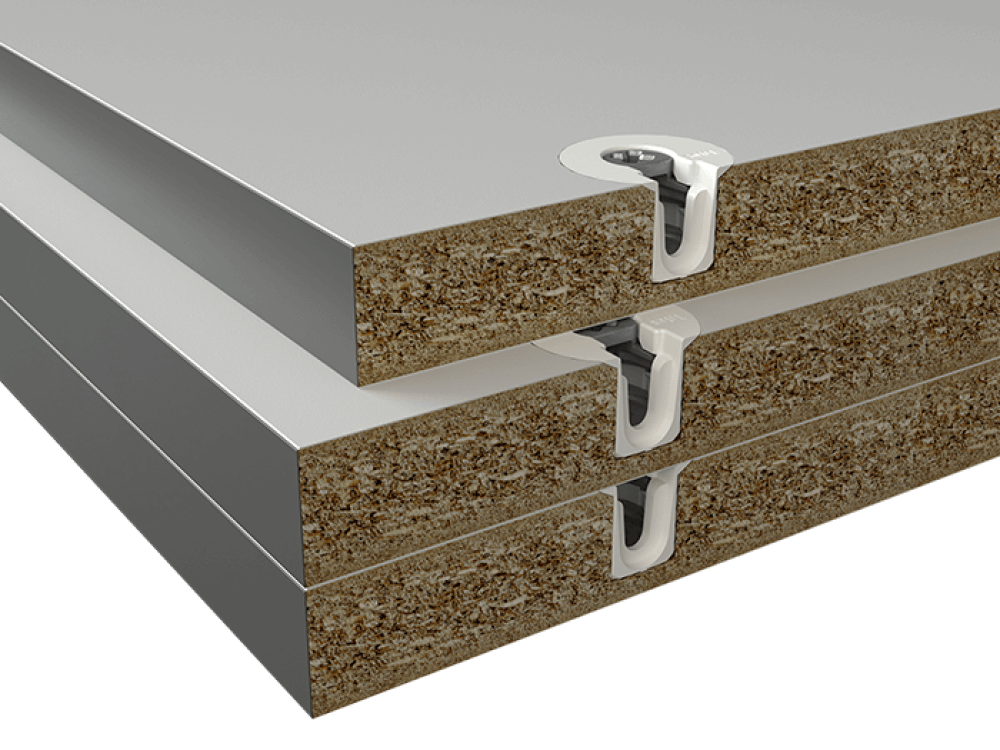

Easy Flat-pack Transport
The flush finish with the panel ensures easy transportation and minimizes the possibility of damage to the panel.
- Easy flat-pack transport
- Less bulky packaging
- Prevents panel damage during transport or during panel storage
Compatible with Standard Cover caps

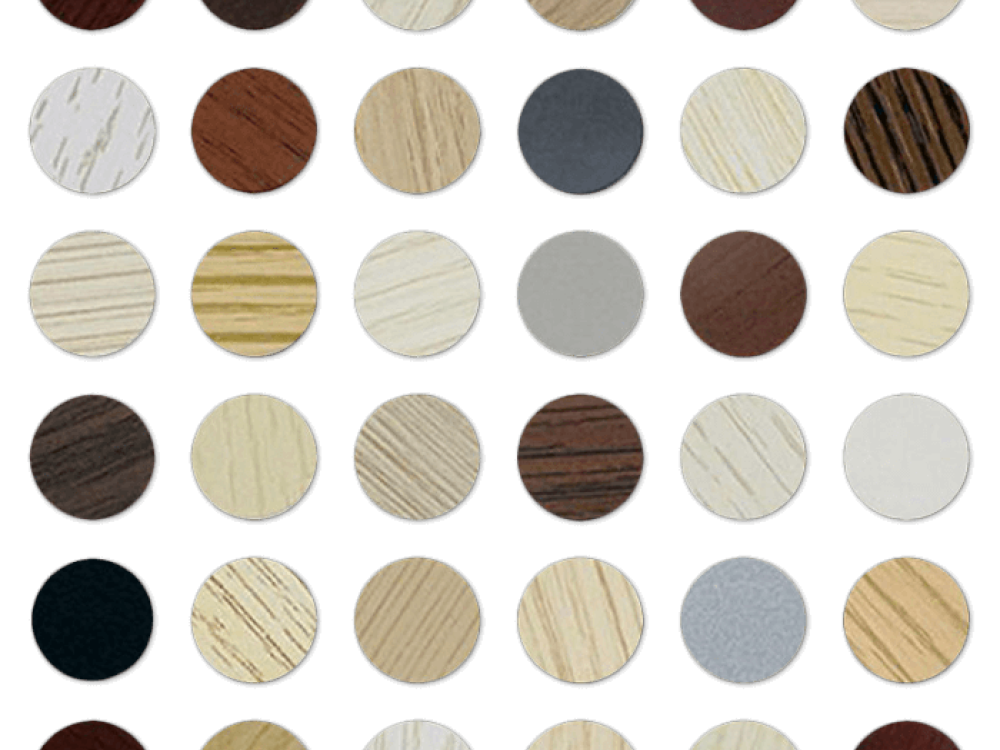

Compatible with standard self-adhesive cover caps:
- Single color housing reduces the number of SKU's
- Eliminates errors due to insertion of the wrong colour
- Stickers available in many colours and patterns, making the color matching to the board less noticeable in the cabinet

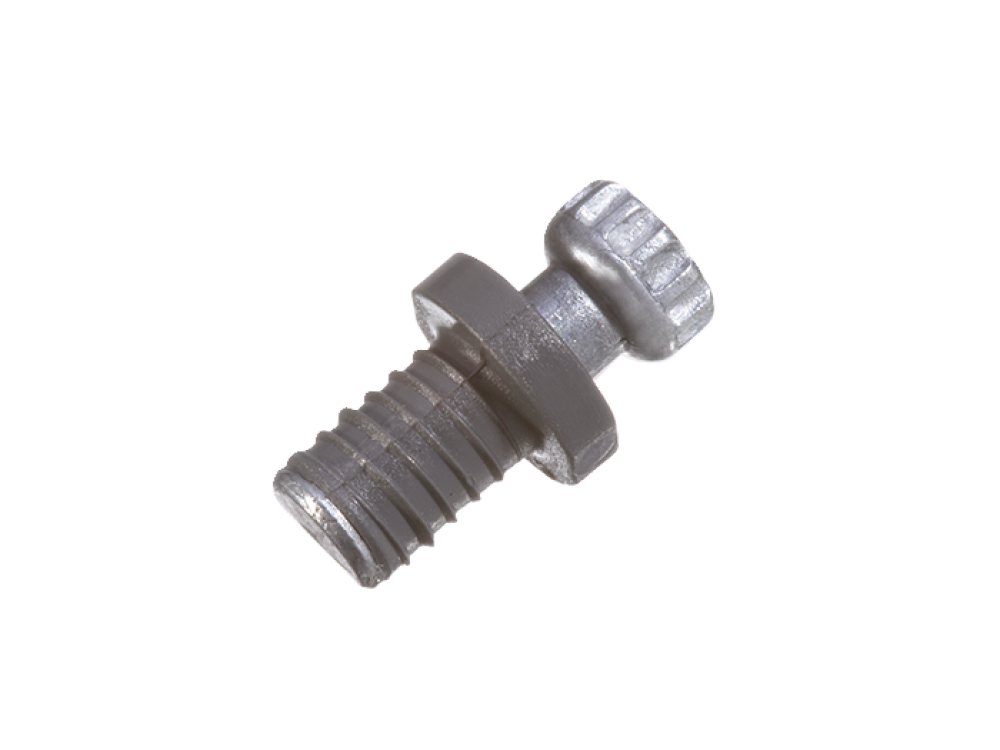

Quick Assembly with Quickfit Dowel
Improved 'at home' assembly experience.

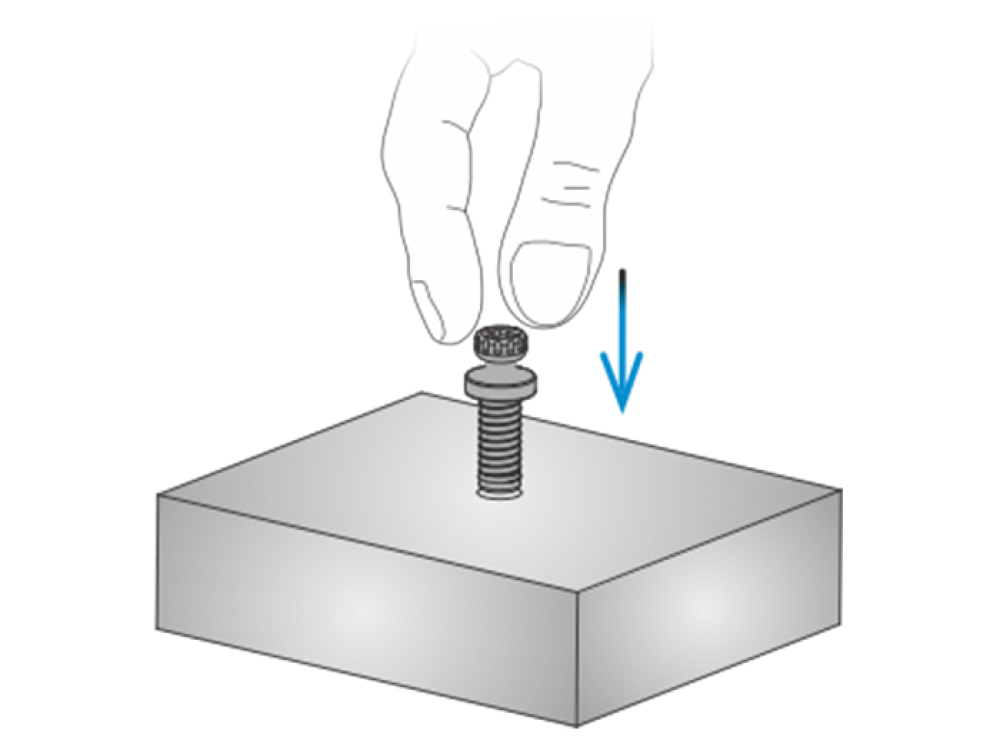

- Easy tool-less installation that provides ultimate on-site flexibility
- Flange on plastic sleeve for accurate and fast insertion

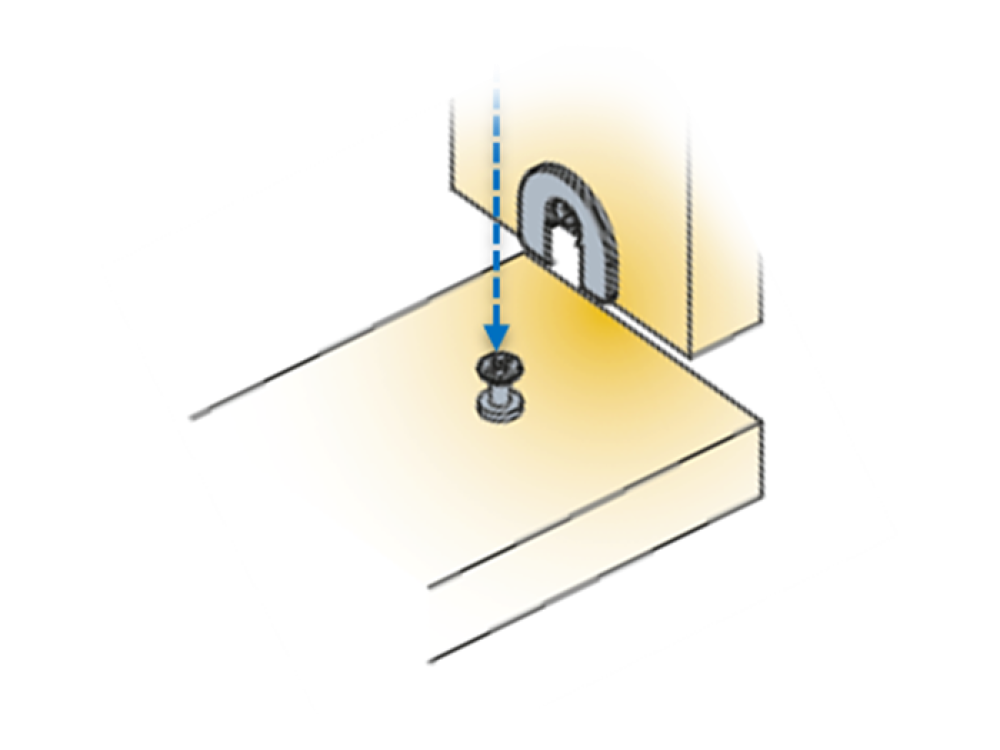

- Easy removal of dowel without damaging the panel and reinstalled at any location
Author: Titus Group
Technical Overview
| Drilling: | 20mm |
| Panel thickness: | 19mm |
| Drilling depth: | 14mm |
| Application: | side-entry, drop-on |
| Housing type: | non-outrigger |
| Dowel range: | Quickfit, screw-in |
Download Catalog
For technical details and specifications, please download our catalogue.
