LamaCaster die casting machines

lamacaster e65 cover

Excellent design, precision engineering, high-quality build standards, and forward-thinking innovation

Every LamaCaster machine is constructed using the same core principles: excellent design, precision engineering, high-quality build standards, and forward-thinking innovation. Our pneumatic, hydraulic, and electric models are all built around these four essential principles, delivering productivity, casting quality, and cost-effectiveness to our customers.

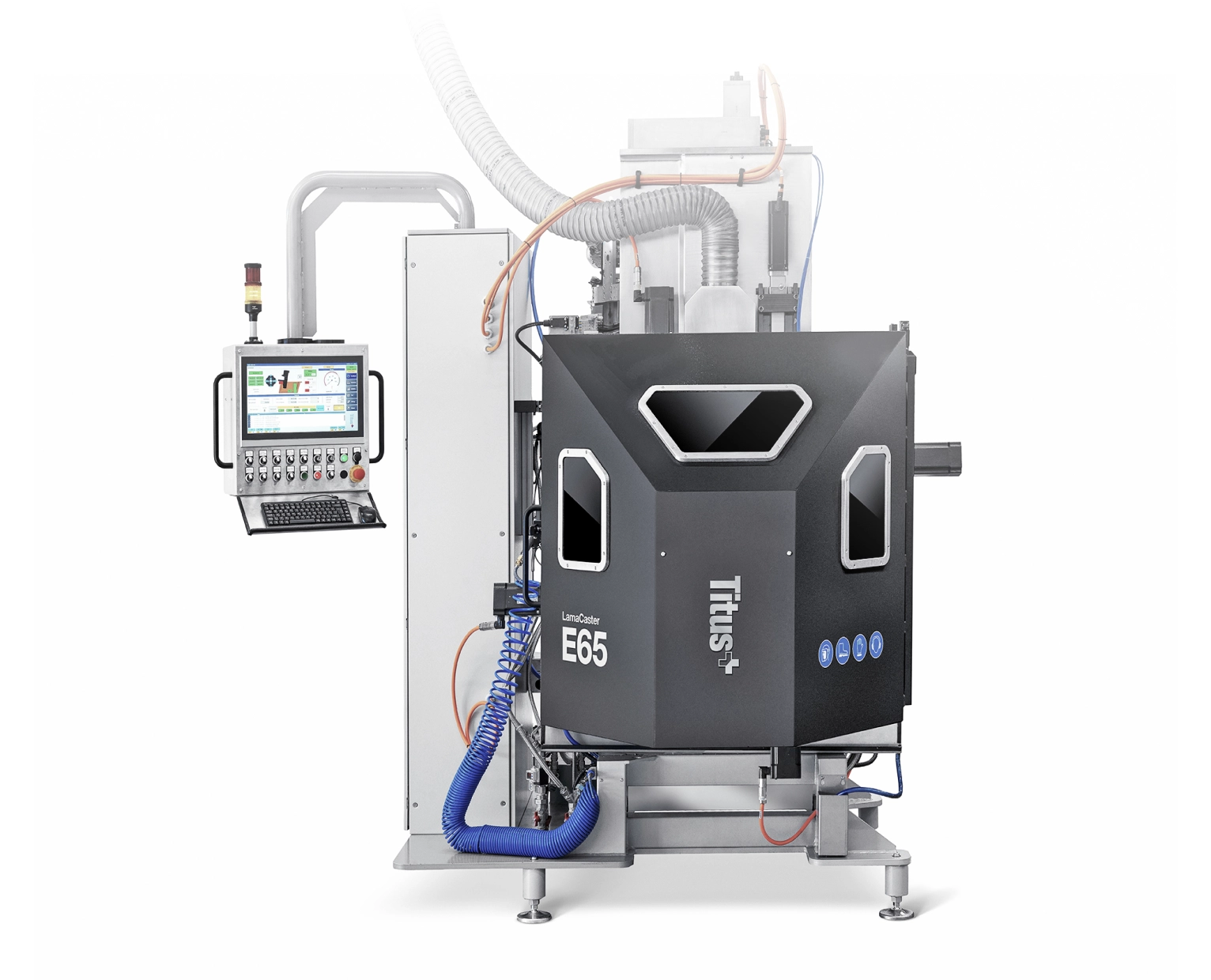

Silent

LamaCaster

E65

Specification

  • Tool size 65 mm x 65 mm, 100 mm x 65 mm (as an option)
  • Clamping force 4 tonnes
  • Shot weight Up to 150 g
  • Dry cycle speed 80 cycles/min
  • Casting speed 40 cycles/min

The LamaCaster E65 is an all-electric multi-slide machine. Using the latest servomotor technology and controls, it delivers real energy-saving performance compared with similar pneumatic and hydraulic machines. While reducing process energy inputs, it remains highly productive – fast-cycling, precise, and capable of producing the most demanding parts.

E65

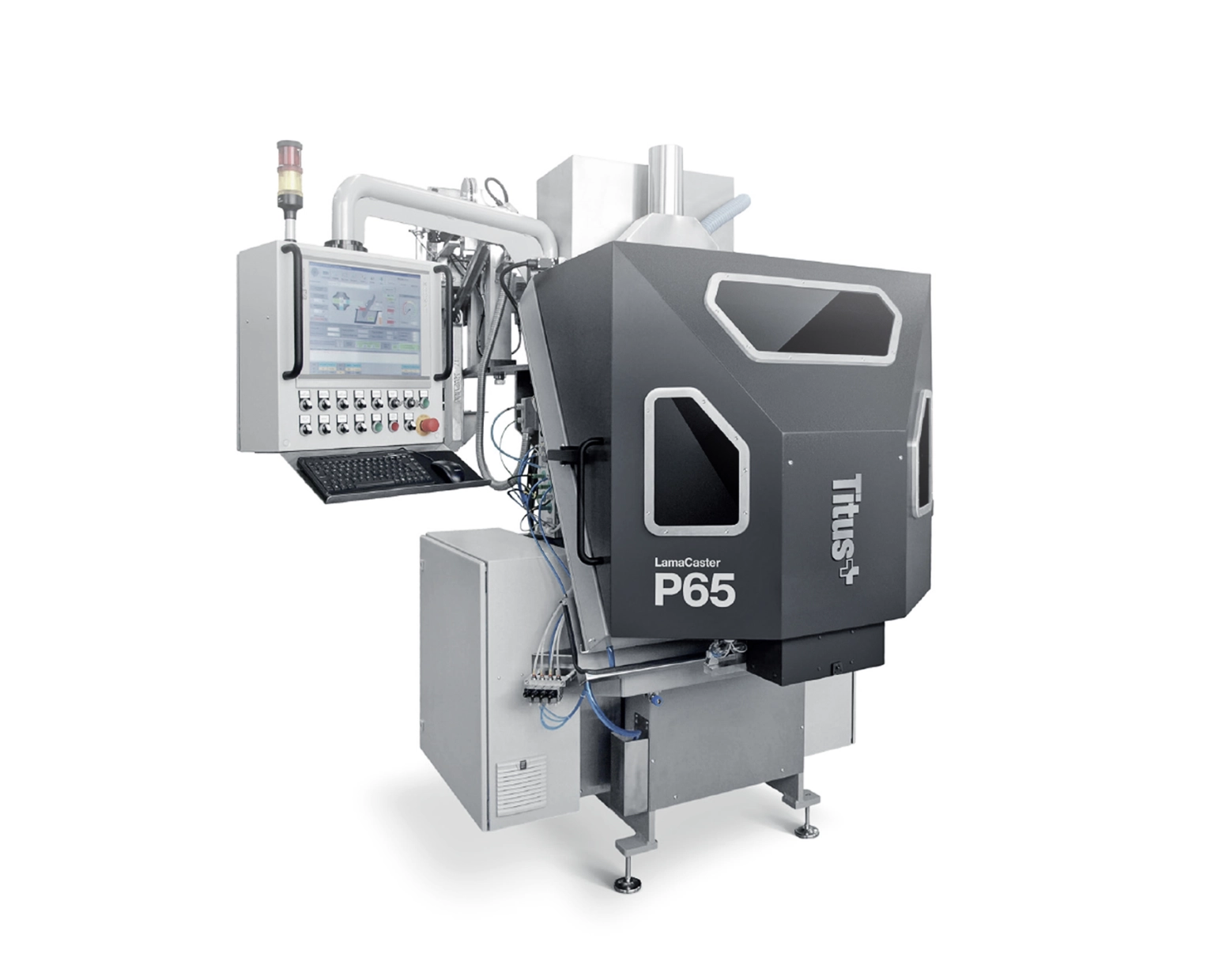

LamaCaster

P65

Specification

  • Locking force 2 tonnes
  • Tool size 65mm x 65mm
  • Shot weight up to 60g
  • Dry cycle speed 100 cycles per minute

The LamaCaster P65 is very fast cycling pneumatic machine producing parts up to 60g. The P65 is designed to deliver speed and repeatability in the production of small parts, it is ideal for producing zinc components.

P65

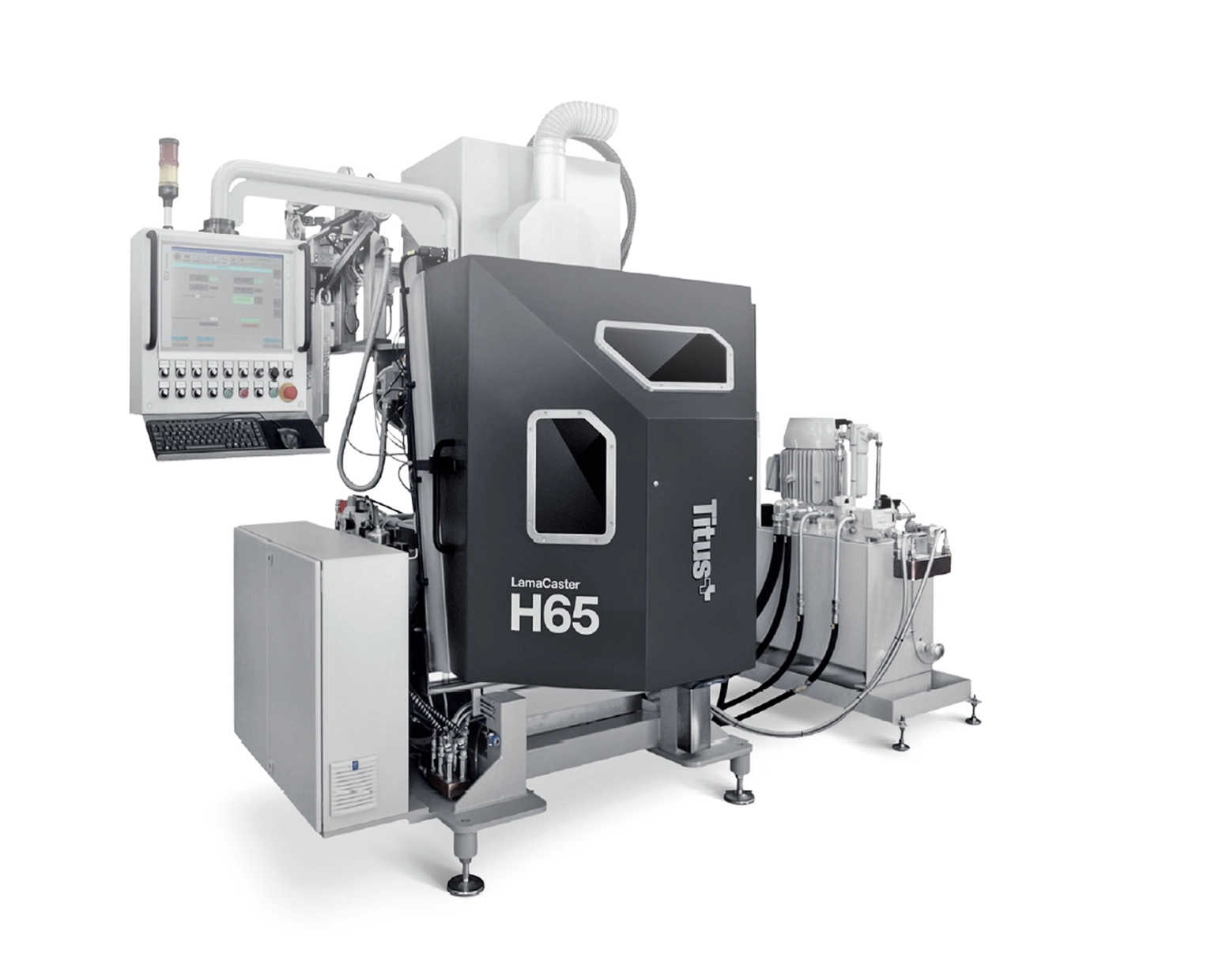

LamaCaster

H65

Specification

  • Locking force 8 tonnes
  • Tool size 65mm x 65mm, 100mm x 65mm (as an option)
  • Shot weight up to 90g
  • Dry cycle speed 65 cycles per minute

The LamaCaster H65 is a hydraulic machine with an eight-tonne locking force combined with a powerful injection unit, it can produce parts of up to 90 grams. The LamaCaster H65 is ideal for producing the high quality, high integrity die castings demanded by the automotive and electronics industries.

H65

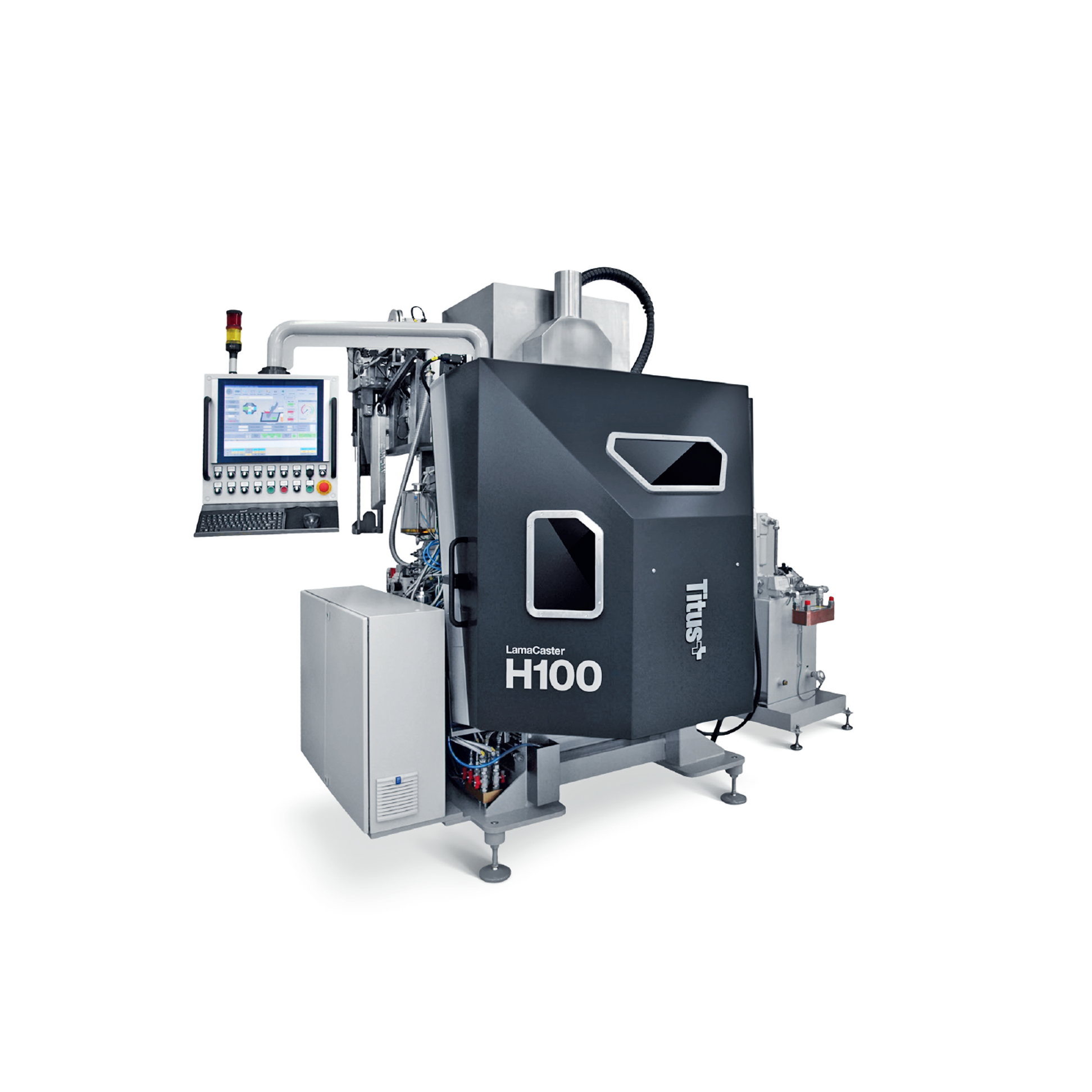

LamaCaster

H100

Specification

  • Locking force 20 tonnes
  • Tool size 100mm x 100mm
  • Shot weight up to 220g
  • Dry cycle speed 45 cycles per minute

The LamaCaster H100 is our most powerful machine with a 20-tonne locking force and matching injection performance, this machine can produce castings with fine tolerances and thin wall sections suitable for all decorative finishes for parts up to 220g.

lamacaster h100 product overview

Engineered for choice

The LamaCaster range includes pneumatic, hydraulic, and electric models. Our key values apply to all – each technology delivers them differently.

  • Key values

    • Innovation – Continual improvement of machine designs, control systems, and servo technologies.
    • Productivity – High output, reduced downtime, and faster ROI.
    • Reliability – Industrial durability, stable processing, and low maintenance.
    • Sustainability – Lower energy consumption, reduced emissions, and ESG alignment.

  • Common benefits

    • Proven multi-slide system – Precision multi-slide die casting, ideal for small, complex parts.
    • High productivity – Fast-cycling multi-cavity tooling maximizes production speed.
    • Durability and long life – Robust construction designed for demanding industrial use.
    • Repeatable results at high volumes – Stable processing ensures consistent quality at scale.
    • Optimum raw material use – Split-line injection minimizes waste and maximizes efficiency.

  • Sustainability and responsibility

    • Environmental responsibility – High energy efficiency, reduced waste, and cleaner production methods.
    • Social & workplace standards – Safe operating environments and fair labor practices across all operations.
    • Governance & traceability – Transparent, accountable, and traceable manufacturing processes from end to end.
    • Measurable results – Designed into every LamaCaster E65 to actively support your ESG compliance.

Service and support

Our qualified, factory-trained staff provide global aftersales service and expert technical support across our full product range.

  • Machine projects

    Backed by our experienced engineering team, from machine selection and delivery to commissioning and ongoing support.

  • Training

    We provide training across all machine types to help your staff maximise performance and production efficiency.

  • Spare parts

    We stock comprehensive spare parts in Europe, with additional inventories in the USA and Asia.

  • Breakdown support

    We provide remote breakdown support from Slovenia, with on-site service available when needed.

  • Servicing

    Annual on-site servicing keeps machines in optimum condition and performing at their best.
