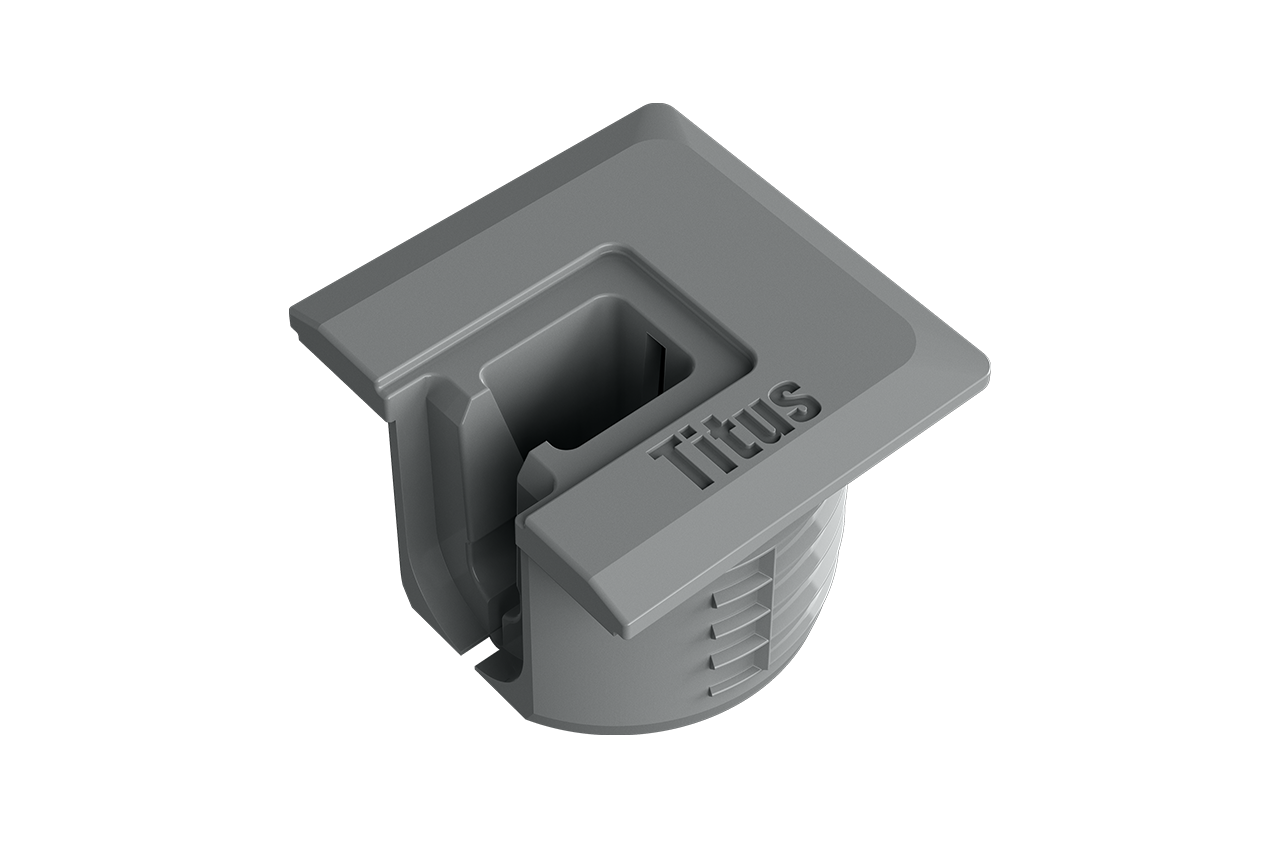

The expanding Wedgefix housing for Quickfit and/or screw-in dowels is available in a variety of drilling depths and plastic colours. It can be assembled manually at home or factory pre-inserted. When used with Quickfit dowels, it provides a true toolless fastening system.
Full tool-free assembly
Completely tool-free push-in assembly when used with Quickfit dowel.
Strong cabinet support
Wedgefix internal draw feature securely pulls the panels together. Wedgefix holds the panels tightly in place, while still allows adjustment. If the panel needs to be relocated, it can be simply unsnapped.
Flexibility in use
A wide dowel slot on Wedgefix gives good insertion tolerance and is especially suited for consumer use, working equally well horizontally and vertically. Typical applications include book cases, storage systems and display units.
Download catalogue
For all the technical details please download the document below.
Subscribe to our newsletter
Subscribe to our newsletter and be among the first to learn about our latest products, state-of-the-art innovations and company-related news.
Technical overview
| Drilling | 20mm |
| Panel thickness B | 12mm, 15/16mm, 18/19mm, 22mm |
| Drilling depth D | 10mm, 12.5mm, 14mm, 16mm |
| Drive type | no tightening required |
| Application | manual insertion |
| Dowel range | Quickfit, screw-in |
