Slidix
Slidix is a comprehensive range of damping solutions for applications in various interior and exterior sliding doors, pocket doors, shower doors, and wardrobes.
Compact design
It is all gathered in a compact design with low impact in the application, which means the manufacturer needs less adaptation to fit the mechanism to different door situations.
Consistent performance
Slidix delivers consistent performance across a broad temperature range, from -30°C to +85°C, ensuring reliability in diverse environments.
Versatility
Slidix is designed to provide reliable soft-closing solutions up to 120 kg, ensuring smooth and controlled operation.
Controllable damping

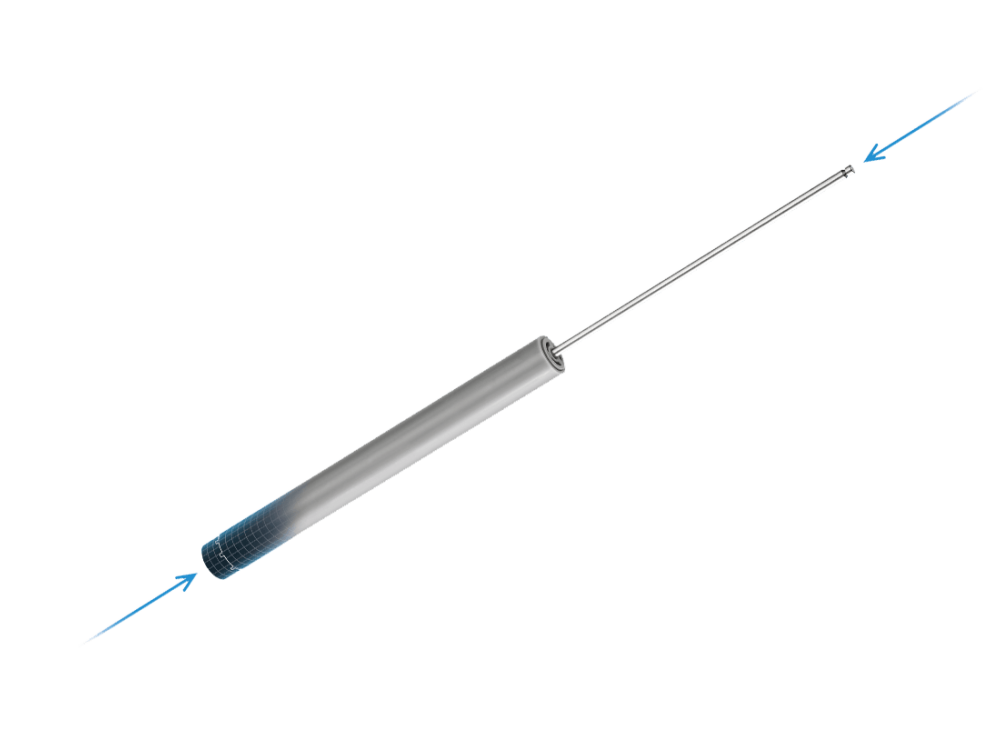

One of the main parts of Slidix systems is Titus hydraulic damper. Hydraulic damping technology offers a fully controllable damping curve, with the ability to define forces and their distribution very precisely over the whole damping action – in order to fine-tune performance to specific applications.
Efficient modular design
The design follows a modular approach, enabling easy customisation and fine-tuning to meet specific customer application requirements with minor modifications and a combination of standard components.
Push opening function
The new Titus pocket door system PushTrio combines push opening and damping functions in a single mechanism to ensure effortless and comfortable opening and reliable closing of interior pocket sliding doors.
Download catalogue and brochure

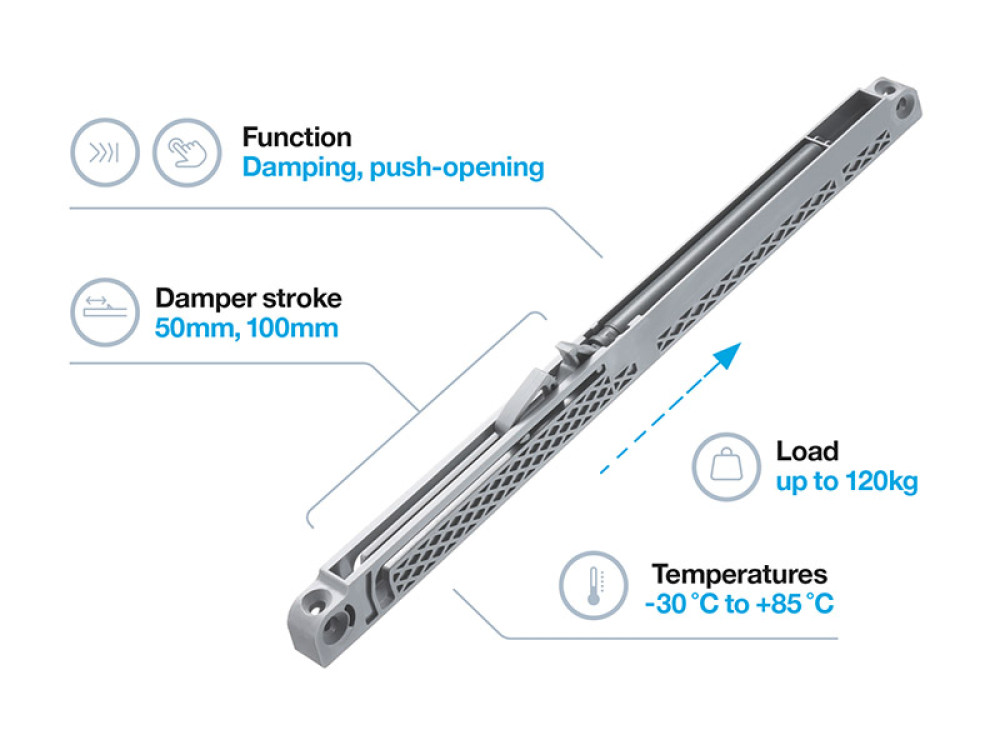

Technical overview
| Load | up to 120kg |
| Damper stroke | 50mm, 100mm |
| Function | damping, push-opening |
| Temperature | from -30°C to +85°C |
Product overview
-
Slidix mechanism
-
Area of application:
-
Function
-
Damping direction
-
Load capacity
-
Damping stroke
-
Dimensions Slidix mechanism length/width/height
-
Slidix Solo 50
-
Slidix Solo 50
-
Sliding door
-
Damping
-
Single direction
-
up to 80 kg
-
50 mm
-
237/11/23,5 mm
-
-

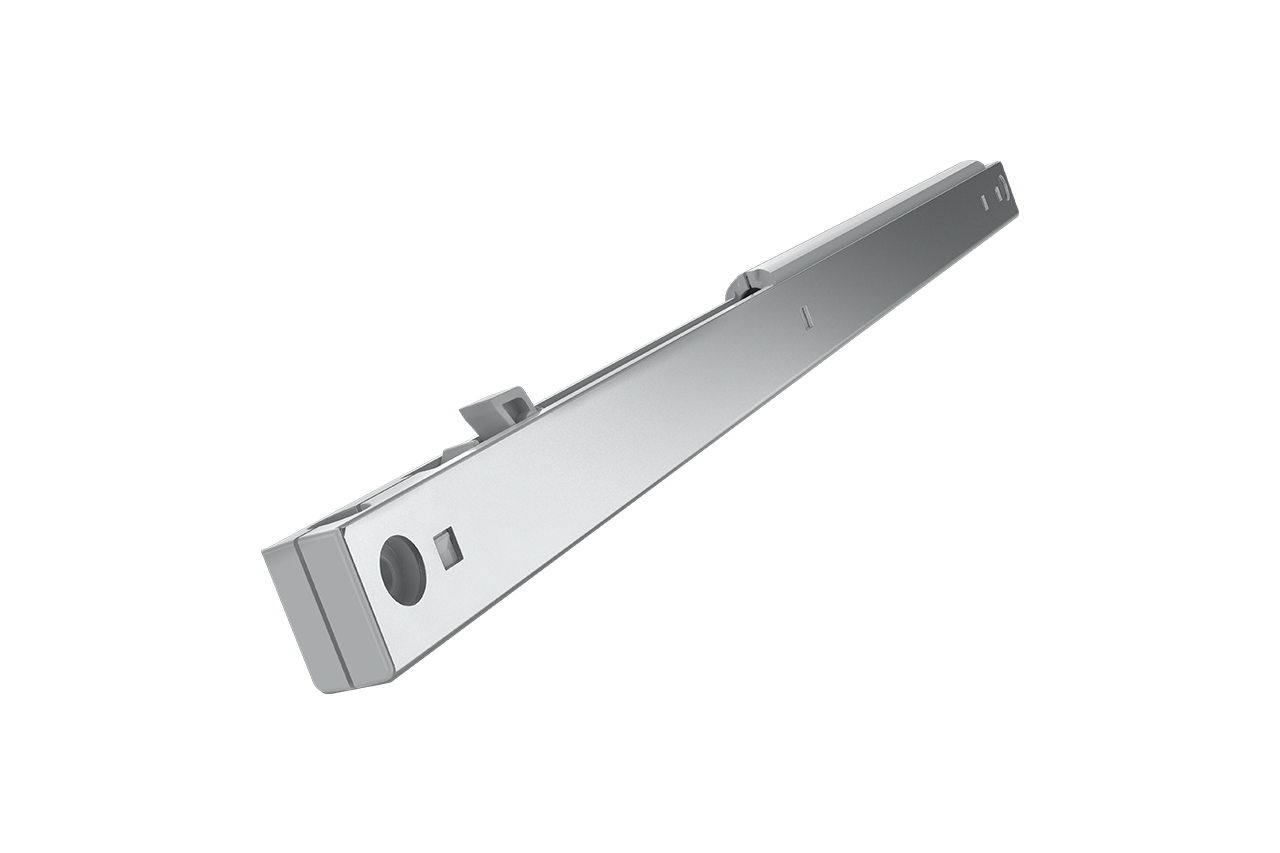

Slidix Solo 100
-
Slidix Solo 100
-
Heavy door
-
Damping
-
Single direction
-
up to 120 kg
-
100 mm
-
370/12,7/27,1 mm
-
-
Slidix Solo 50R
-
Slidix Solo 50R
-
Shower door
-
Damping
-
Single direction
-
up to 80 kg
-
50 mm
-
298/11/26,4 mm
-
-
Slidix Centro 50
-
Slidix Centro 50
-
Furniture middle door
-
Damping and centering
-
Dual direction
-
up to 40 kg
-
50 mm
-
298/11/26,4 mm
-
-
Slidix Duo 50
-
Slidix Duo 50
-
Barn door
-
Damping
-
Dual direction
-
up to 80 kg
-
50 mm
-
237/11/23,4 mm
-
-
Slidix Duo 100
-
Slidix Duo 100
-
Barn door
-
Damping
-
Dual direction
-
up to 120 kg
-
100 mm
-
403/12,7/27,1 mm
-
-
PushTrio
-
PushTrio
-
Push to open solution for pocket door
-
Damping and push opening
-
Dual direction
-
up to 80 kg
-
50 mm
-
258/21,5/21 mm
-
-
Slidix mechanism
-
Area of application:
-
Function
-
Damping direction
-
Load capacity
-
Damping stroke
-
Dimensions Slidix mechanism length/width/height
